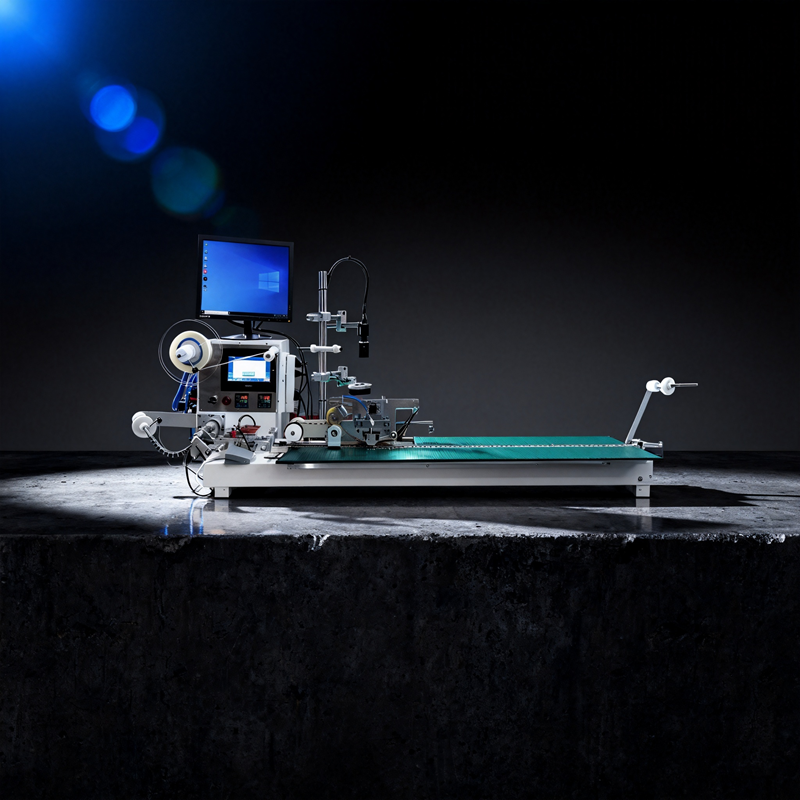

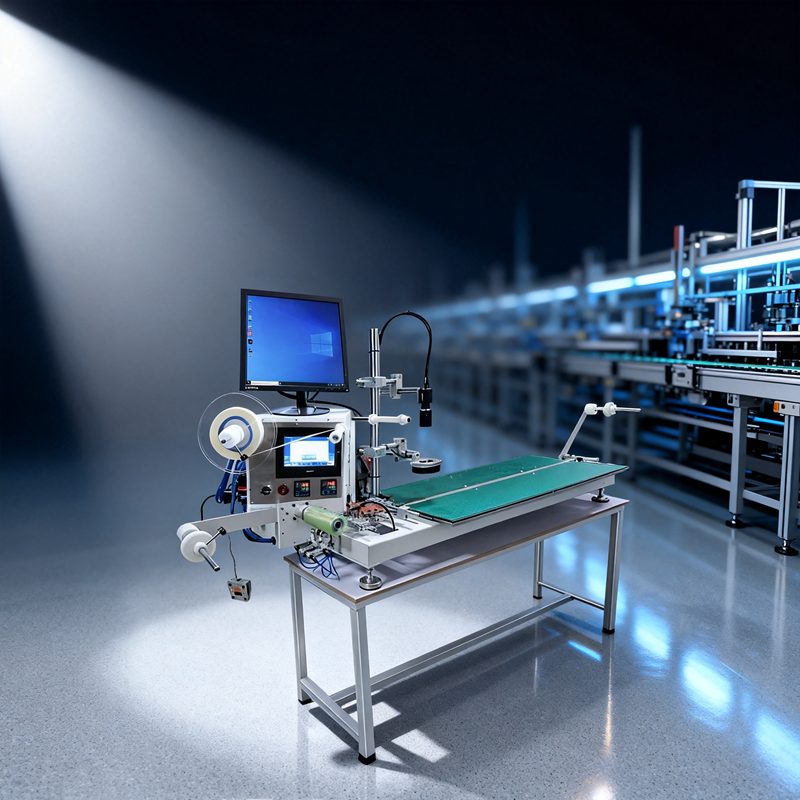

ZTZ00S-C Automatic Touch Screen CCD Inspection Taping Packaging Machine
Product Naming
| Item | Description |
|---|---|
| Model | ZTZ00S-C |
| Product Name | Automatic Touch Screen CCD Inspection Taping Packaging Machine |
| Series Positioning | CCD Vision Inspection Series (ZTZ00S-C), Semi‑Automatic Basic Series (ZTZ00S-B) |
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ZTZ00S-C |
| Overall Dimensions | L2100 × W450 × H400 mm |
| Worktable Dimensions | L800 × W450 mm |
| Number of Operators | 1 ~ 4 persons |
| Taping Speed | 1000 ~ 5000 PCS/H (depending on component type and inspection items) |
| Inspection System | CCD high‑definition industrial camera + vision inspection algorithm |
| Control Method | Touch screen HMI (Human‑Machine Interface) |
| Counting Method | Encoder counting |
| Sealing Mode | Self‑adhesive / Heat‑seal (dual mode) |
| Machine Weight | Approx. 40 kg |
| Power Supply | AC 220V / 50Hz |
| Air Pressure | 4 ~ 5 kgf/cm² (0.4 ~ 0.5 MPa) |
Product Detailed Description
Product Overview
The ZTZ00S‑C Automatic Touch Screen CCD Inspection Taping Packaging Machine is a next‑generation device built on a semi‑automatic taping machine platform, integrating a CCD industrial vision inspection system and touch screen intelligent control. While performing taping and packaging, this machine automatically inspects components for appearance defects, achieving an integrated “inspection + taping” workflow. This significantly improves quality control efficiency, reduces manual visual inspection costs, and minimizes the risk of missed defects.

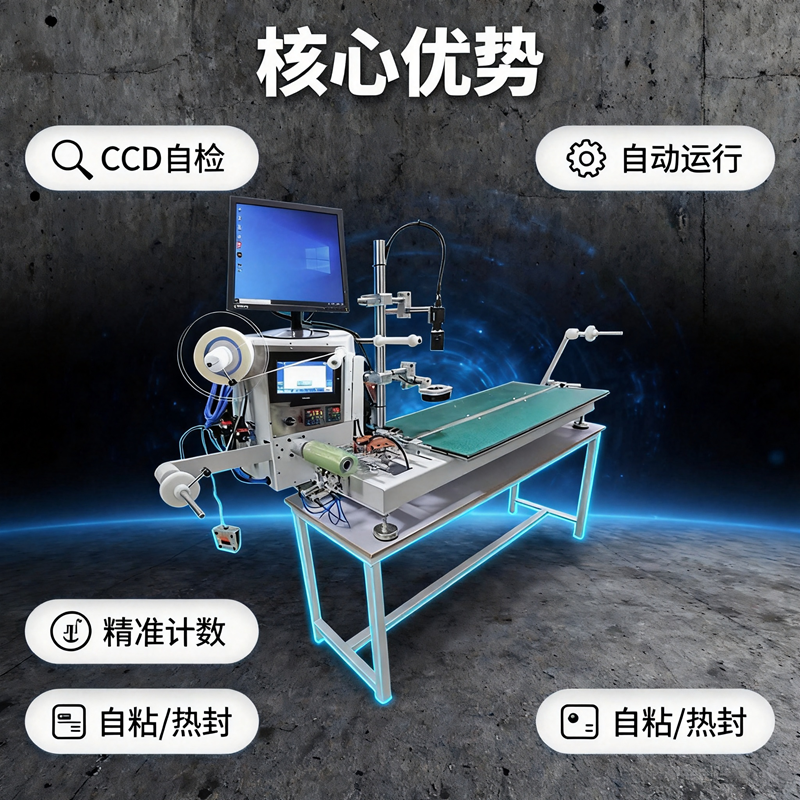

Core Functions
CCD Vision Inspection
- Equipped with a high‑definition industrial camera for automatic recognition of component appearance defects
- Detects common defects such as missing components, tilting, pin deformation, reverse polarity, surface scratches, etc.
- Inspection results are displayed in real time on the touch screen; NG (non‑conforming) parts are automatically flagged or trigger an alarm
Touch Screen Intelligent Control
- 7‑inch / 10‑inch high‑definition touch screen with Chinese operation interface
- Intuitive parameter adjustment: taping speed, sealing temperature, inspection thresholds can be set with one touch
- Supports historical data query, production statistics, and yield report export
Dual‑Mode Sealing
- Self‑adhesive taping + heat‑seal taping – switchable with one touch
- Adapts to different carrier tape widths (8mm / 12mm / 16mm / 24mm, etc.)
- PID precise temperature control ensures stable and consistent heat‑sealing results
High Efficiency & Productivity
- Taping speed: 1000–5000 PCS/H – adjustable to meet production needs

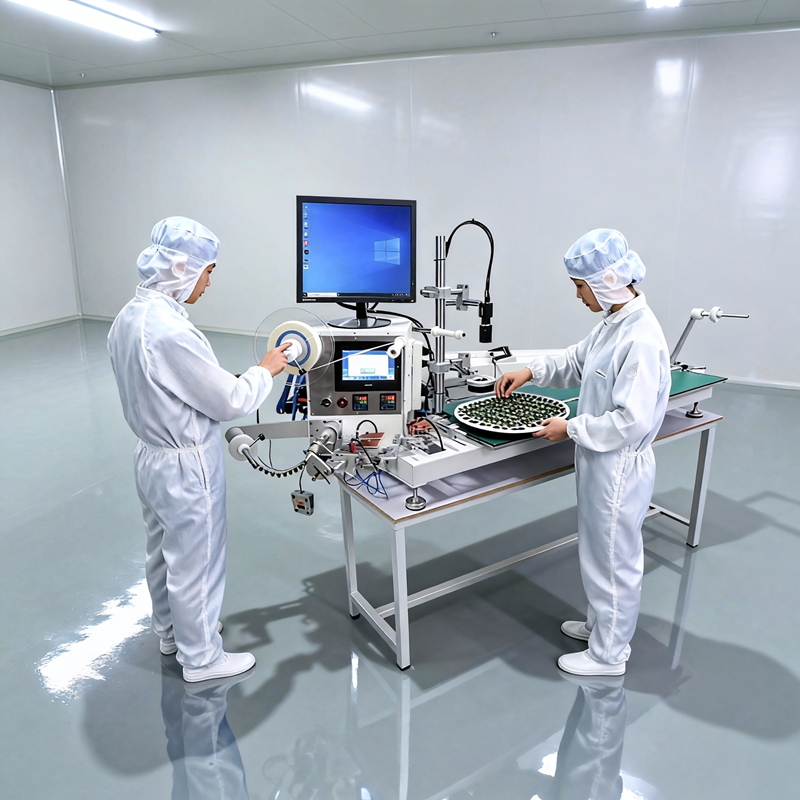

- Supports 1–4 operators working together: loading materials, monitoring, re‑inspecting defects, and taking up reels
- Encoder counting prevents missing or double counting
Compact & Durable
- Machine dimensions: only L2100×W450×H400mm – benchtop design
- Weight approx. 40 kg – easy to reposition and integrate into production lines
- Runs on 220V mains power and standard plant air supply (4–5 kgf/cm²)
Applications
SMT assembly plants | Electronic component manufacturers | EMS (Electronics Manufacturing Services) | LED packaging companies | Connector manufacturers | Semiconductor test & packaging | Quality inspection laboratories
Comparison with ZTZ00S‑B Semi‑Automatic Version
| Feature | ZTZ00S‑B (Semi‑Automatic) | ZTZ00S‑C (CCD Inspection Version) |
|---|---|---|
| Control Method | Physical buttons / knobs | Touch screen HMI |
| Vision Inspection | None | CCD industrial camera |
| Appearance Defect Detection | Manual visual inspection | Automatic inspection |
| Data Management | None | Production / yield statistics |
| Application Scenario | Basic taping packaging | Integrated inspection & packaging |
