Here’s the English translation of the 330mm Blue PS Reel (13‑inch Integrated Carrier Tape Take‑up Reel) product description.
Product Name: 330mm Blue PS Reel | 13‑inch Integrated Carrier Tape Take‑up Reel | Electronic Packaging Material
Specifications: 13×12 / 13×16 / 13×24 / 13×32 / 13×44 | Integrated one‑piece | Blue | PS | 13 inch | 44 PCS/CTN
Product Overview

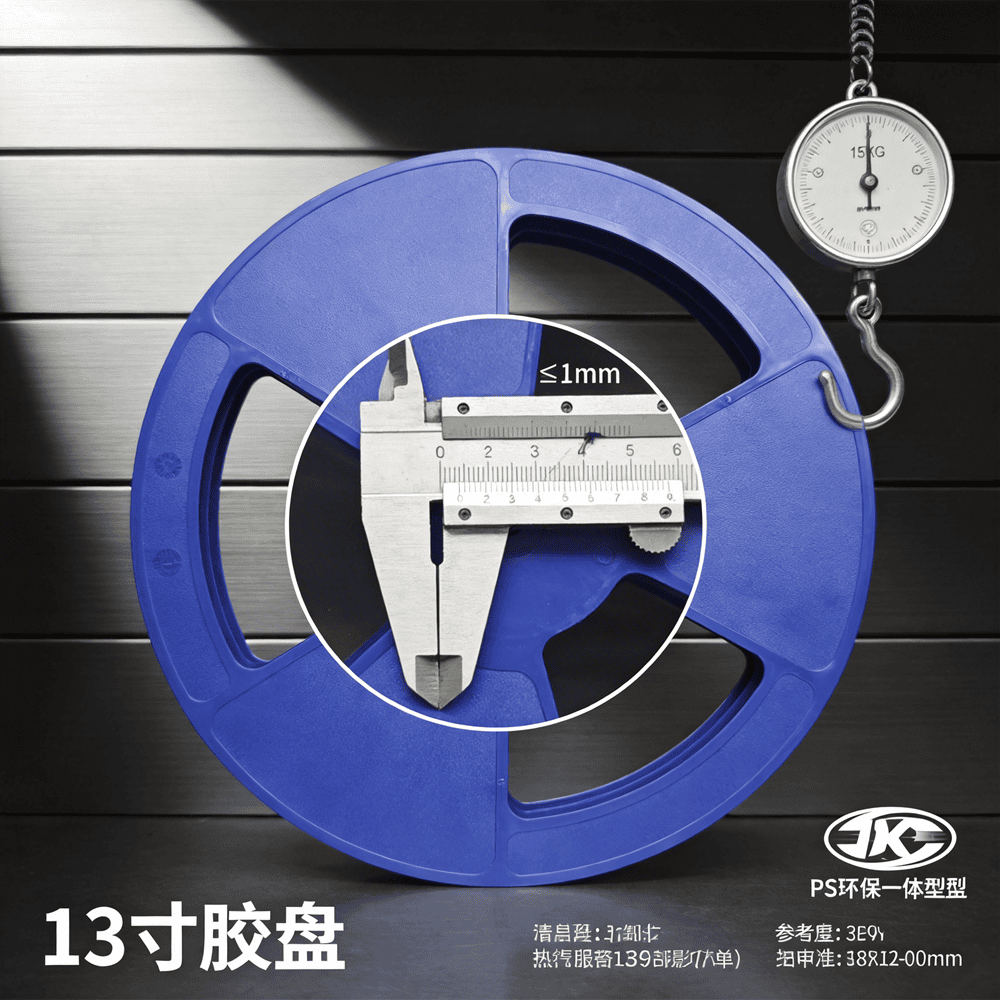

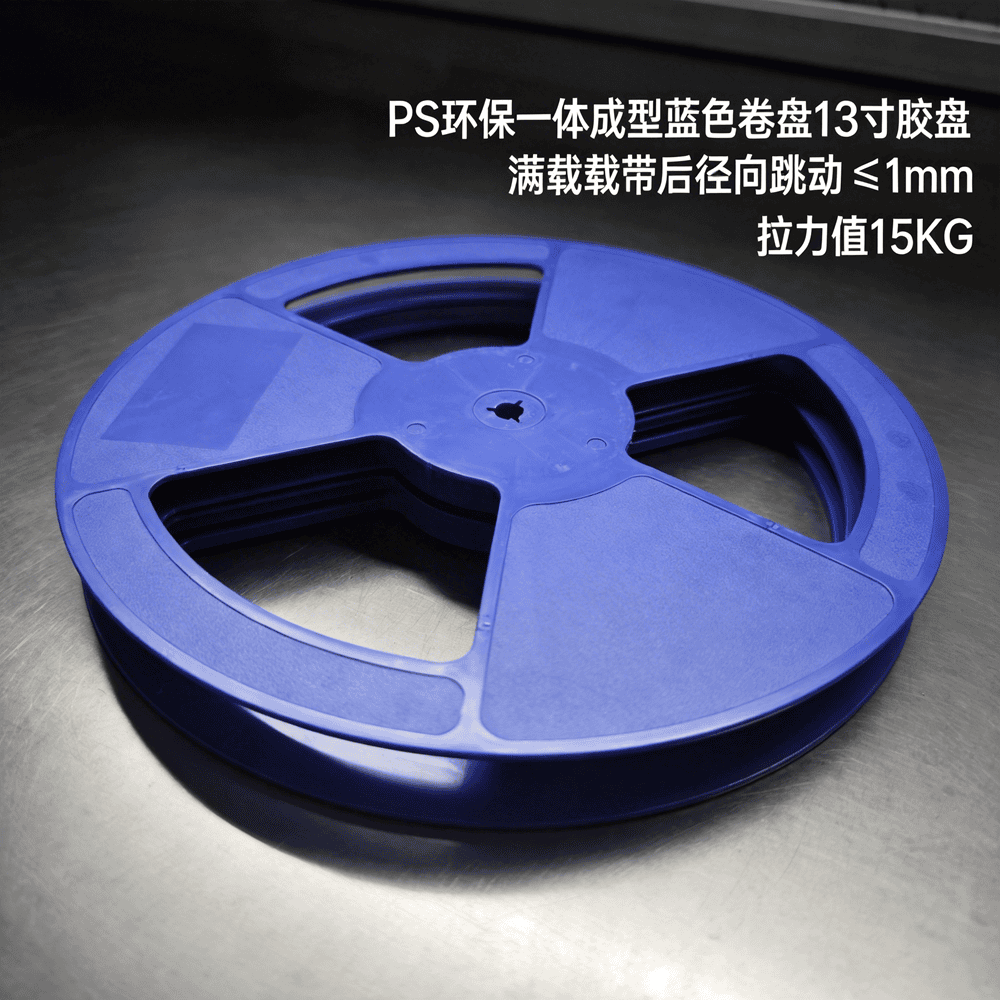

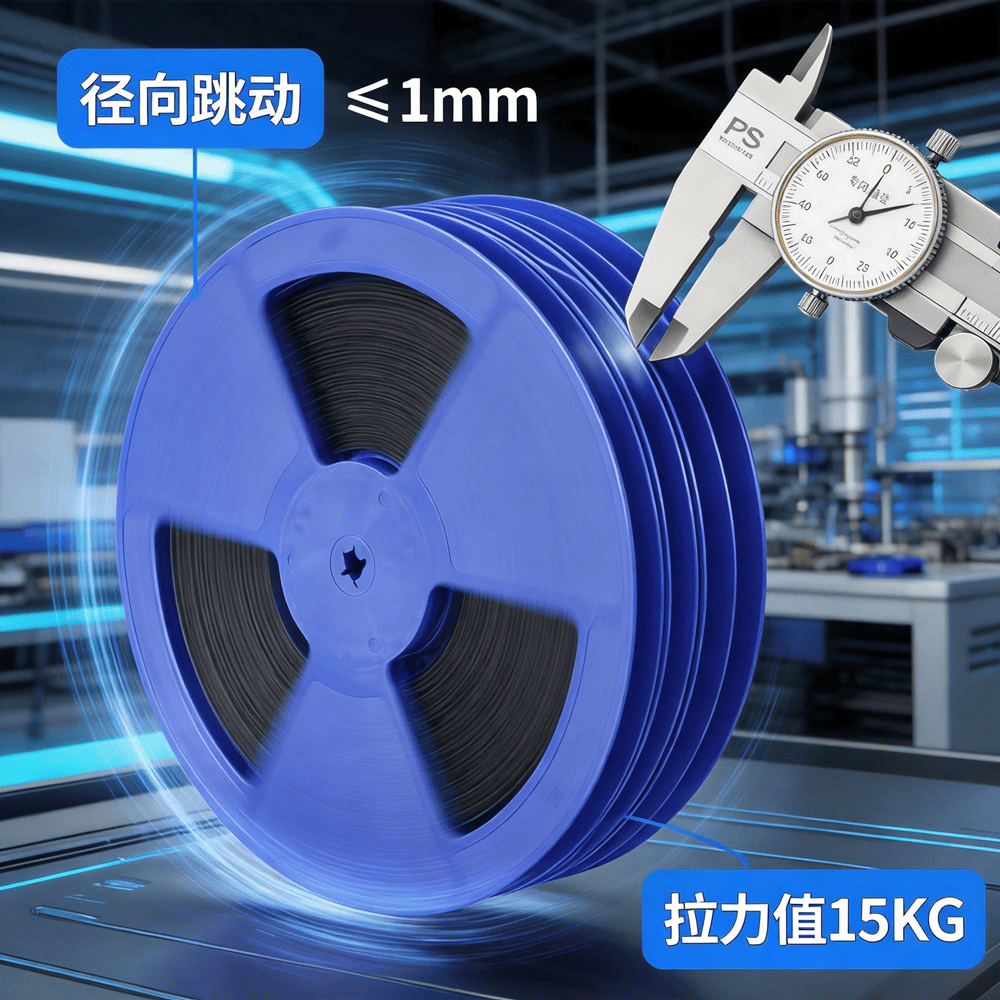

This product is a 13‑inch (330mm) blue one‑piece molded plastic reel specially designed for the electronic component packaging industry. Manufactured from high‑quality PS (polystyrene) material, it offers good anti‑static properties and high structural strength. Suitable for winding carrier tapes for medium to large electronic components such as connectors, large inductors, relays, and power modules – ensuring that components remain neatly arranged and stable during transportation, storage, and SMT placement.
Key Specifications
| Parameter | Description |
|---|---|
| Size | 13 inch (outer diameter approx. 330mm) |
| Hub Hole / Arbor Sizes | 13×12 / 13×16 / 13×24 / 13×32 / 13×44 |
| Material | PS (Polystyrene) |
| Color | Blue |
| Molding Process | One‑piece molded (no seams, no risk of breakage) |
| Anti‑Static Treatment | Surface provides anti‑static properties – suitable for sensitive electronic components |
| Packing Quantity | 44 PCS / carton |
Applications
- Packaging of medium to large electronic components such as connectors, relays, transformers
- Winding of carrier tapes for high‑power inductors, module power supplies, sensors, etc.
- Large‑size supply reels for SMT automatic placement lines
- Warehousing and logistics turnover for electronic packaging materials
Product Advantages
1. One‑Piece Molding – Higher Strength
The seamless construction maintains excellent rigidity and impact resistance even at the 13‑inch size. It is not prone to cracking or deformation after long‑term use.
2. Stable and Reliable PS Material
Good dimensional stability and surface smoothness – does not damage carrier tape or components. Suitable for precision electronic component packaging.
3. Anti‑Static Performance
The surface anti‑static treatment effectively reduces the risk of electrostatic damage to sensitive components, meeting ESD control requirements of the electronics industry.
4. Blue Color for Easy Identification
The blue reel facilitates visual management on the production line, allowing quick differentiation of product specifications or batches, and reducing material mix‑ups.
5. Multiple Hub Hole Sizes Available
Five hub hole sizes: 13×12 / 13×16 / 13×24 / 13×32 / 13×44 – compatible with different carrier tape widths (covering 12mm to 44mm). Strong compatibility.
6. Standard 13‑Inch Size
330mm outer diameter – compatible with mainstream large‑size SMT feeders and take‑up equipment. Easy to change.
7. Well‑Organized Packaging – Easy Management
44 PCS per carton in standardized packing quantity – easy for counting, warehousing, and batch purchasing.
Hub Hole Options & Corresponding Carrier Tape Widths (Reference)
| Hub Hole Size | Compatible Carrier Tape Width (reference) |
|---|---|
| 13×12 | 12mm carrier tape |
| 13×16 | 16mm carrier tape |
| 13×24 | 24mm carrier tape |
| 13×32 | 32mm carrier tape |
| 13×44 | 44mm carrier tape |
Note: Actual compatibility depends on the specific interface dimensions of the carrier tape.
Precautions
- Before use, confirm that the reel’s hub hole matches the carrier tape width to avoid jamming or looseness.
- Store in a cool, dry place away from prolonged direct sunlight or high temperatures (PS material recommended operating temperature ≤70°C).
- Do not stack large reels too high to prevent deformation of the bottom reels.
Packaging Method
44 PCS / carton
Packed in high‑strength corrugated cartons with internal protective partitions or bubble cushioning to ensure the reels are not compressed or deformed during transportation.
Optional Additional Information (if needed)
| Item | Description |
|---|---|
| Customization Options | Color, material (PS/PC/PET), logo printing, etc. available |
| MOQ | Please contact sales for confirmation |
| Lead Time | Stock available for standard specifications; custom specifications – please inquire |
