PS Carrier Tape

Below is the English translation of the detailed product description for the Black PS Conductive Clean Carrier Tape.

Product Name: Black PS Conductive Clean Carrier Tape | Semiconductor Chip Carrier Tape | SMT Reel Carrier Tape

Product Overview

This product is a black PS conductive clean carrier tape specially designed for semiconductor packaging, IC chips, and high-end electronic components. It is manufactured using high-quality conductive-grade PS (polystyrene) material, offering excellent electrical conductivity, high cleanliness, and precise dimensional tolerances. Suitable for tape-and-reel packaging of chips, integrated circuits, sensors, connectors, crystal oscillators, LEDs, and other high-precision components. When used with cover tape, it meets the continuous feeding requirements of SMT automatic placement lines.

Key Specifications

ParameterValue
Product NameBlack PS Conductive Clean Carrier Tape / Semiconductor Chip Carrier Tape / SMT Reel Carrier Tape
MaterialPS (Polystyrene), conductive grade
ColorBlack
Width Options8mm / 12mm / 16mm / 24mm / 32mm / 44mm / 56mm / 72mm / 88mm
Thickness0.25mm – 0.45mm (customizable based on component requirements)
Dimensional Tolerance±0.05 mm (precision grade, compatible with automated equipment)
Surface Resistance10³ – 10⁵ Ω (conductive grade, permanent conductivity)
CleanlinessCleanroom grade, low dust, low outgassing (suitable for Class 1000+ clean environments)
Length (meters)Customizable (length per reel according to customer requirements)
Packaging QuantityCustomizable

Applications

  • Semiconductor Packaging: IC chips, wafer‑level packaging, SiP modules
  • Integrated Circuits: SOP, SSOP, QFP, QFN, BGA, and other package types
  • Precision Electronic Components: Sensors, crystal oscillators, filters, relays
  • Connectors: Board‑to‑board connectors, FPC connectors, pin headers / sockets
  • LED Packaging: SMD LED, COB LED
  • SMT Automatic Placement: Continuous feeding for pick‑and‑place machines

Product Advantages

1. Excellent Conductivity & Reliable ESD Protection

  • Surface resistance 10³ – 10⁵ Ω, fast static dissipation
  • Permanent conductivity (conductive masterbatch, not surface coating) – no performance degradation
  • Effectively protects static‑sensitive semiconductor devices

2. Cleanroom Grade – Meets High‑End Packaging Requirements

  • Clean process control – low dust, low ionic outgassing
  • Suitable for Class 1000+ cleanroom environments
  • No contamination of precision device surfaces – ensures packaging yield

3. Precision Dimensional Tolerances – Excellent Automation Compatibility

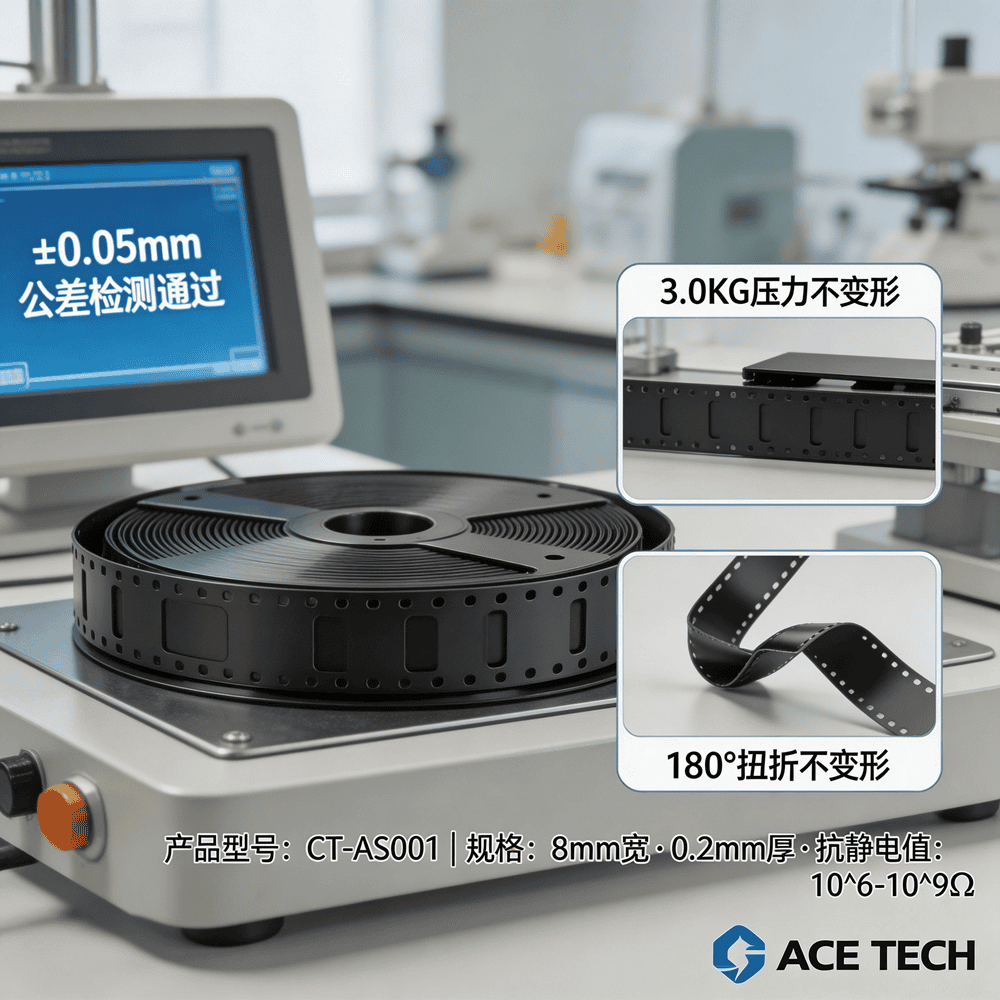

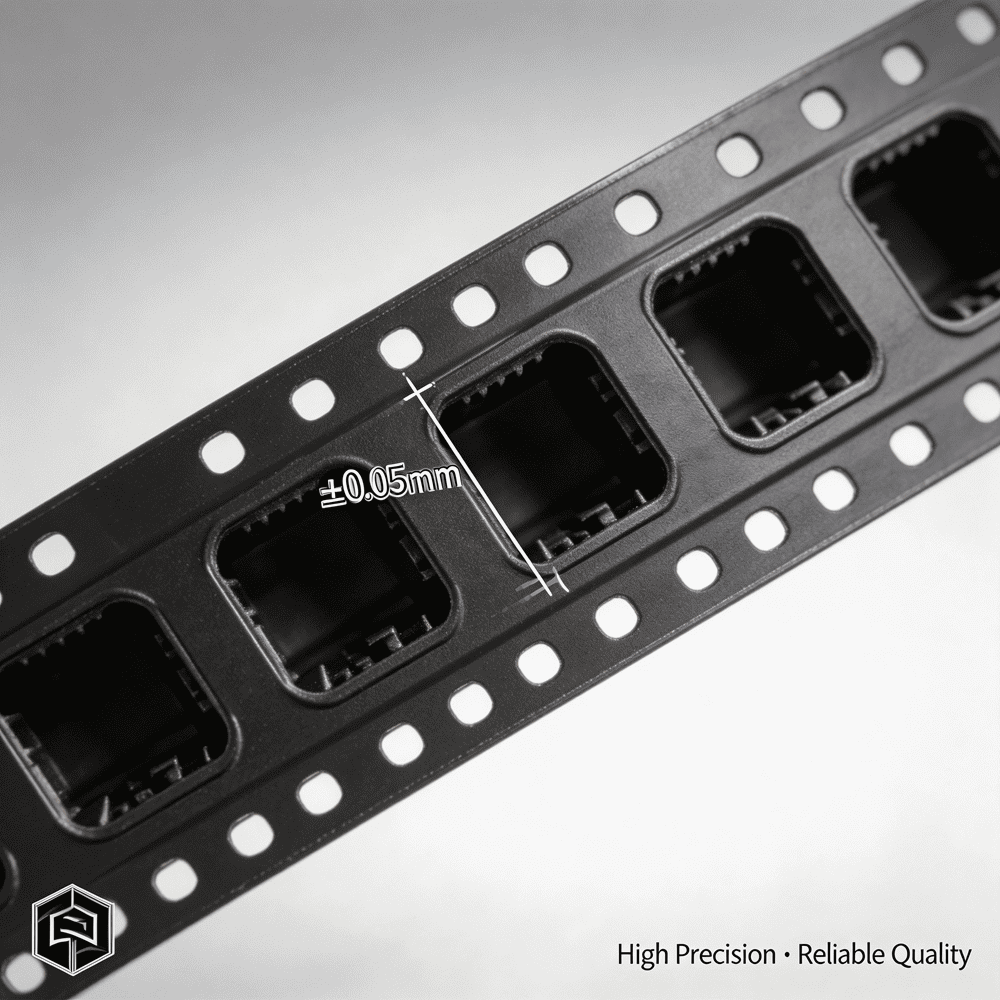

  • Dimensional tolerance controlled within ±0.05 mm
  • Accurate and stable width, cavity depth, and sprocket hole pitch
  • Ensures tight sealing with cover tape and smooth feeding in SMT equipment

4. Black Design – Compatible with Optical Recognition

  • Black material enhances contrast for optical inspection in SMT equipment
  • Blocks light – suitable for photosensitive components
  • Aids heat dissipation – helps lower component operating temperature

5. PS Material – Good Rigidity & Easy Forming

  • Good dimensional stability, not prone to deformation
  • Smooth surface – does not scratch component leads or bodies
  • Moderate cost – suitable for high‑volume use

6. Wide Range of Widths – Comprehensive Coverage

WidthTypical Component Size
8mmMicro components (0402/0603/0805)
12mmSmall ICs, LEDs, diodes
16mmSOP‑8/16, small connectors
24mmWide‑body SOP, sensors
32mmQFP, QFN, medium connectors
44mmLarge ICs, BGA
56mmPower modules, large connectors
72mmExtra‑large components, modules
88mmCustom large components

7. Customizable Length – Flexible Purchasing

  • Length per reel based on actual usage – reduces waste
  • Standard options: 50m, 100m, 200m, 300m, 500m/reel
  • Can be customized to match customer’s automatic winding equipment parameters

Technical Data Sheet

ParameterSpecification
MaterialPS (Polystyrene), conductive grade
ColorBlack (Pantone available on request)
Width8 / 12 / 16 / 24 / 32 / 44 / 56 / 72 / 88 mm
Width Tolerance±0.05 mm
Thickness0.25 – 0.45 mm (customizable)
Thickness Tolerance±0.03 mm
Sprocket Hole Pitch Tolerance±0.05 mm
Cavity Depth Tolerance±0.05 mm
Surface Resistance10³ – 10⁵ Ω
CleanlinessClass 1000 (Class 100 available on request)
Tensile Strength≥ 25 MPa
Heat Deflection Temperature≥ 70℃
Max Reel LengthDepends on width (100m – 500m)
PackagingStandard reel packaging + antistatic bag + carton

Schematic Diagram

      ┌─────────────────────────┐
      │  Tape width W (8-88mm)  │
      │  ±0.05                  │
   ┌──┼───┐  ┌───┐  ┌───┐       │
   │  │ ○ │  │ ○ │  │ ○ │ Cavity │
   └──┼───┘  └───┘  └───┘       │
      │  Depth H ±0.05          │
      │  Pitch P ±0.05          │
      └─────────────────────────┘
      Material: Black conductive PS
      Surface resistance: 10³-10⁵ Ω

Recommended Cover Tape (Optional)

Carrier Tape WidthRecommended Cover Tape WidthCover Tape Type
8-12mm5.4mm / 9.3mmHeat‑sealable / Pressure‑sensitive
16-24mm13.3mm / 21.3mmHeat‑sealable / Pressure‑sensitive
32-44mm25.5mm / 37.5mmHeat‑sealable / Pressure‑sensitive
56-88mm49.5mm / 81.5mmHeat‑sealable / Pressure‑sensitive

Cover tape can be supplied together to ensure sealing strength and peel force stability.

Dimensional Tolerance Details

Inspection ItemToleranceInspection Tool
Overall Width±0.05 mmProjector / Caliper
Cavity Depth±0.05 mmDepth gauge / Projector
Cavity Width±0.05 mmProjector
Sprocket Hole Pitch±0.05 mmProjector
Edge FlatnessNo burrsVisual + Magnifier
Warpage≤ 1mm/300mmFlat plate inspection

Usage Precautions

  1. Storage Environment: Keep in a cool, dry place (15‑30℃, 30‑70% RH), avoid direct sunlight and high temperatures.
  2. ESD Protection: Ensure workbenches and equipment are properly grounded during use to prevent static buildup.
  3. Cover Tape Sealing: It is recommended to use our matching cover tape and ensure sealing parameters (temperature, pressure, time) are compatible.
  4. Handling: Avoid heavy pressure and sharp objects that could scratch the tape surface.
  5. Shelf Life: Recommended for use within 6 months; for longer storage, keep sealed in moisture‑proof packaging.

Packaging Method

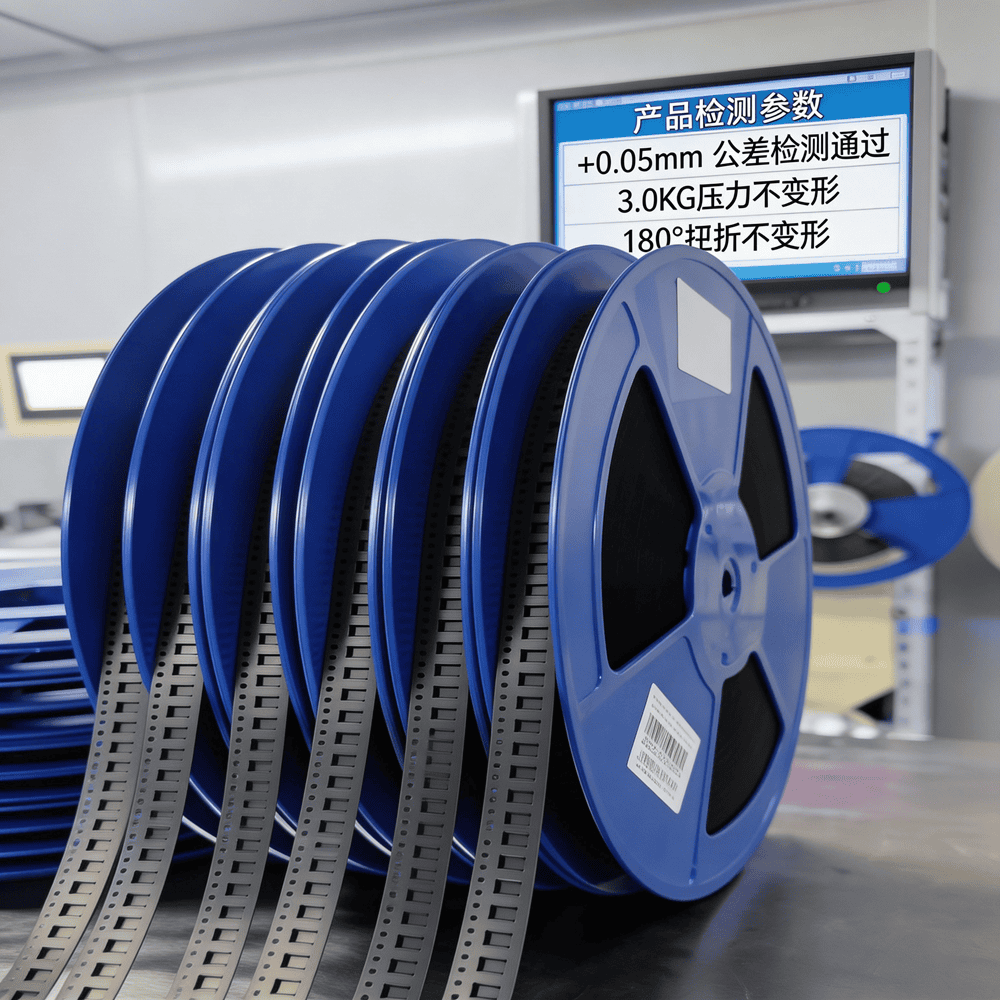

  • Reel Packaging: Carrier tape wound on standard plastic reels (7″ or 13″)
  • Inner Packaging: Antistatic bag – vacuum‑sealed or heat‑sealed
  • Outer Packaging: High‑strength corrugated carton with cushioning material inside
  • Labeling: Each reel/carton marked with width, length, lot number, surface resistance value

Length Customization Guide

Width RangeRecommended Length (m/reel)Max Length
8-12mm100m / 200m / 300m500m
16-24mm100m / 200m400m
32-44mm100m / 150m300m
56-72mm50m / 100m200m
88mm50m100m

Other lengths can be customised based on drawings or samples.

Customization Services

Customization ItemOptions
WidthAny width from 4mm to 120mm
Cavity Depth0.3mm – 10mm
Thickness0.20mm – 0.60mm
Hole PatternEIA‑481 standard / non‑standard custom
ColorBlack / Transparent / Blue
Conductivity Level10³‑10⁵Ω / 10⁴‑10⁶Ω / 10⁶‑10⁹Ω
CleanlinessClass 1000 / Class 100 / Class 10
Tooling DevelopmentFast tooling – samples in 7‑15 days

Quality Assurance

✓ Dimensional inspection report provided with each batch
✓ Surface resistance test report provided with each batch
✓ Cleanliness test report (particle count) available upon request
✓ Compliant with RoHS, REACH environmental standards
✓ Third‑party testing can be arranged

Why Choose Our Black PS Conductive Clean Carrier Tape?

AdvantageDescription
🔧 Precision ManufacturingTolerance ±0.05mm – compatible with high‑speed SMT equipment
⚡ Stable ConductivityPermanent conductive masterbatch – surface resistance 10³‑10⁵Ω
🧼 Cleanroom GradeClass 1000 clean production – low outgassing
📐 Full Size Range9 standard widths covering 8‑88mm
📏 Flexible LengthLength customised to your needs – made to order
🏭 Factory DirectSource manufacturer – high cost‑effectiveness
⏱ Fast DeliveryStandard specs ship in 3‑7 days

Contact Information (Example)

For sample testing, tooling development, or bulk purchasing, please contact us for a quotation and more technical documentation.
