1. Introduction
Surface Mount Technology (SMT) has revolutionized the electronics manufacturing industry by enabling high-density, miniaturized, and automated assembly of electronic components. Central to the SMT process is the carrier tape, which securely holds and transports components—such as resistors, capacitors, ICs, and connectors—through pick-and-place machines. Among the various carrier tape materials, black conductive PS (Polystyrene) carrier tape has emerged as a critical solution for static-sensitive devices, offering superior electrical conductivity and dimensional stability. This article delves into the technical aspects of black conductive PS carrier tape, covering its structure, process parameters, common issues, quality standards, and selection guidelines. By understanding these factors, manufacturers can optimize their SMT packaging processes, reduce defects, and enhance product reliability.
2. Product Structure & Material Composition
2.1 Layer Structure
Black conductive PS carrier tape typically consists of three functional layers: the base layer, the adhesive layer, and a treatment layer. The base layer is made from conductive polystyrene, which provides mechanical strength and electrical conductivity. The adhesive layer bonds the carrier tape to the cover tape, ensuring component retention during handling and transportation. The treatment layer, often a chemical coating, enhances surface wettability and adhesion properties.
2.2 Key Material Parameters

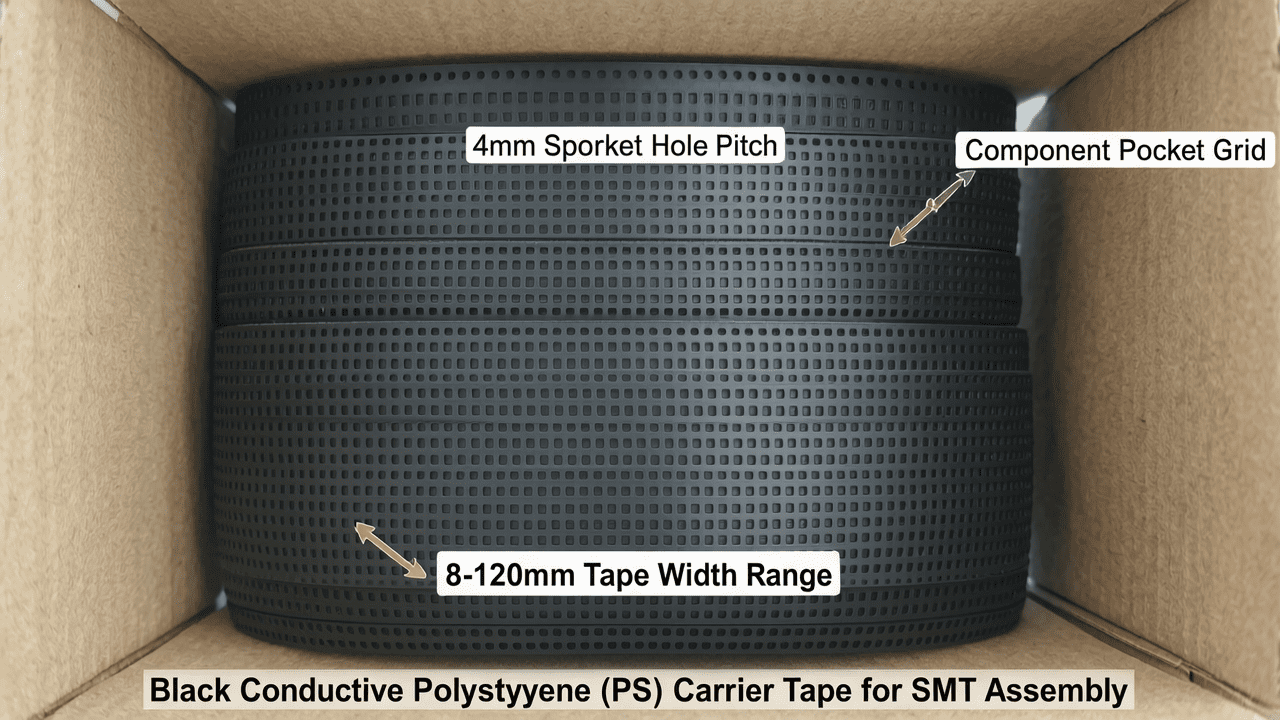

For Kairuie’s black conductive PS carrier tape (model KRC-PS-BC), the base layer thickness ranges from 0.30 mm to 0.50 mm, with a tolerance of ±0.05 mm. The adhesive type is a pressure-sensitive acrylic adhesive, offering a peel strength of 0.2–0.5 N/20 mm at 180° peel angle. Surface resistivity is controlled below 10^5 ohms/square, ensuring effective static dissipation. The tape width varies from 8 mm to 120 mm, with sprocket hole pitch of 4 mm or 2 mm, conforming to EIA-481 standards. The material exhibits a tensile strength of >50 MPa and elongation at break of >5%.
2.3 Specific Product Models
Kairuie offers several models tailored to different applications: KRC-PS-BC-08 (8 mm width), KRC-PS-BC-12 (12 mm width), and KRC-PS-BC-24 (24 mm width). Each model maintains consistent electrical and mechanical properties, with the black coloration providing UV protection for light-sensitive components.
3. Core Process Parameter Control
3.1 Temperature, Pressure, and Time Recommendations
Optimal sealing of carrier tape with cover tape is critical for component integrity. For black conductive PS carrier tape, the recommended sealing temperature range is 130°C to 160°C, with a pressure of 1.5–3.0 bar and a dwell time of 0.5–1.5 seconds. These parameters ensure proper adhesive activation without deforming the tape or damaging components.
3.2 Impact on Product Quality
Temperature below 130°C may result in weak adhesion, leading to cover tape lift-off during handling. Excessive temperature (>160°C) can cause tape shrinkage, embrittlement, or component displacement. Pressure too low (<1.5 bar) reduces bond strength, while high pressure (>3.0 bar) may crush delicate components. Dwell time shorter than 0.5 seconds prevents adhesive flow, whereas longer times increase thermal stress.
3.3 Process Window Optimization
To achieve a robust process window, manufacturers should conduct a design of experiments (DOE) varying temperature, pressure, and time within the recommended ranges. Monitoring peel strength and visual appearance helps identify the optimal combination. For high-throughput lines, a temperature of 150°C, pressure of 2.0 bar, and dwell time of 1.0 second are commonly used as starting points.
4. Common Issues & Troubleshooting
| Symptom | Root Cause | Solution |
|---|---|---|
| Cover tape lifts off during handling | Insufficient sealing temperature or pressure | Increase temperature to 150°C and pressure to 2.5 bar |
| Components shift in pockets | Excessive sealing pressure or high tape tension | Reduce pressure to 1.5 bar and check tape tension |
| Static discharge damage | Surface resistivity >10^5 ohms/square | Verify material conductivity; use anti-static cover tape |
| Peel strength variation | Inconsistent adhesive thickness or contamination | Clean sealing jaws; ensure adhesive layer uniformity |
| Carrier tape curling | High temperature or moisture absorption | Reduce sealing temperature; store in dry environment (RH<60%) |
5. Quality Inspection Standards
5.1 Incoming Quality Control (IQC)
IQC includes visual inspection for scratches, contamination, and color uniformity. Dimensions (width, thickness, sprocket hole pitch) are measured using calibrated gauges, with tolerances per EIA-481. Peel strength is tested using a tensile tester at 180° angle, with acceptance criteria of 0.2–0.5 N/20 mm.
5.2 In-Process Quality Control (IPQC)
During production, sampling frequency is every 1000 meters or per lot change. Acceptance criteria: no visual defects, peel strength within spec, and surface resistivity <10^5 ohms/square. Sprocket hole alignment is checked with a go/no-go gauge.
5.3 Reliability Testing
Aging test: 85°C/85% RH for 500 hours, then re-test peel strength (must remain >0.2 N/20 mm). High/low temperature test: -40°C to 85°C cycles (10 cycles), no cracking or delamination. Transportation simulation: vibration (10–500 Hz, 2 g) and drop test (1 m height), ensuring no component loss.
6. Selection Guide
| Component Type | Recommended Model | Key Considerations |
|---|---|---|
| Passive components (resistors, capacitors) | KRC-PS-BC-08 | 8 mm width, 4 mm pitch; cost-effective |
| Small ICs (SOIC, MSOP) | KRC-PS-BC-12 | 12 mm width, 4 mm pitch; higher strength |
| Large ICs (QFP, BGA) | KRC-PS-BC-24 | 24 mm width, 4 mm pitch; anti-static preferred |
| Connectors & modules | Custom width (up to 120 mm) | Consult Kairuie for tailored solutions |
7. Conclusion
Black conductive PS carrier tape is an indispensable material in SMT packaging, offering reliable static protection, dimensional accuracy, and process compatibility. By adhering to recommended process parameters and quality standards, manufacturers can achieve high yield and component integrity. Kairuie Electronic Materials Co., Ltd. (www.kairuie.com) specializes in producing high-quality black conductive PS carrier tapes, with rigorous testing and customization options to meet diverse application needs. We invite industry peers to exchange ideas and explore advanced packaging solutions together.
