1. Introduction
In the realm of Surface Mount Technology (SMT) packaging, carrier tapes play a critical role in the reliable transport and placement of electronic components. Among the various types, black conductive PS (Polystyrene) carrier tape has emerged as a specialized solution for components sensitive to electrostatic discharge (ESD). This article delves into the technical aspects of black conductive PS carrier tape, exploring its structure, process parameters, common issues, quality standards, and selection guidelines. By understanding these factors, engineers can optimize their SMT assembly processes to ensure high yield and reliability.
2. Product Structure & Material Composition
Layer Structure

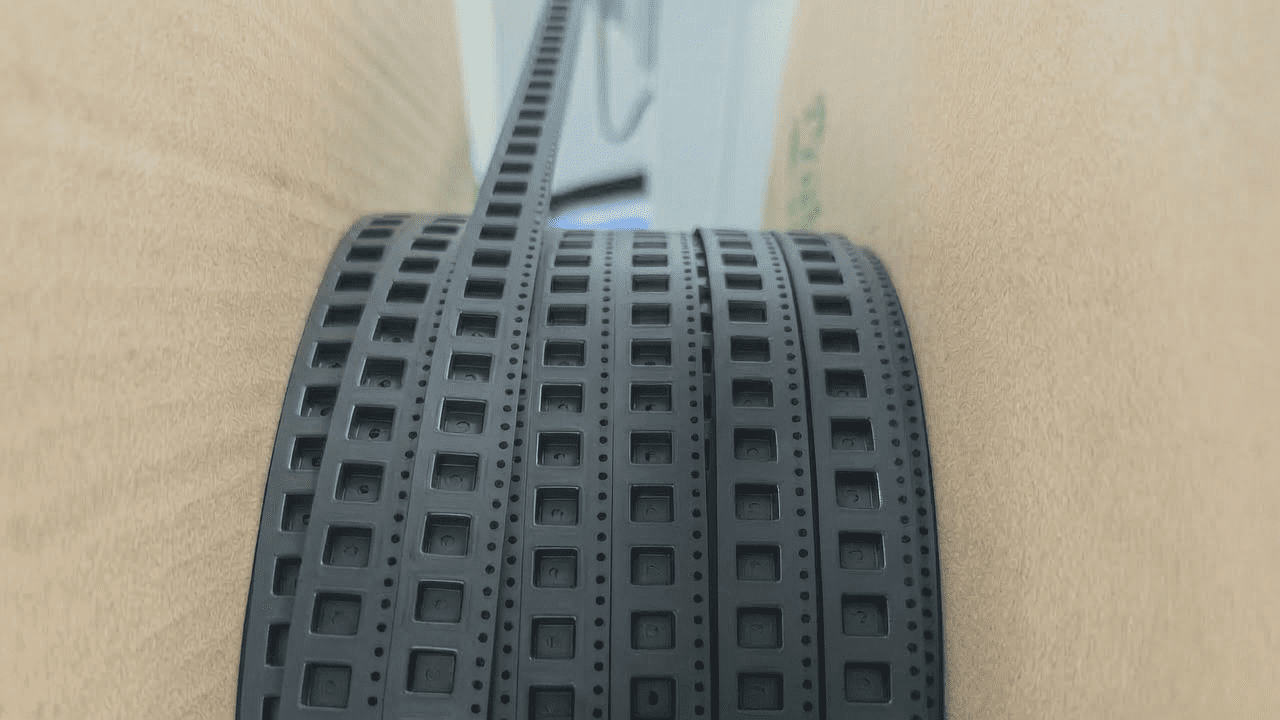

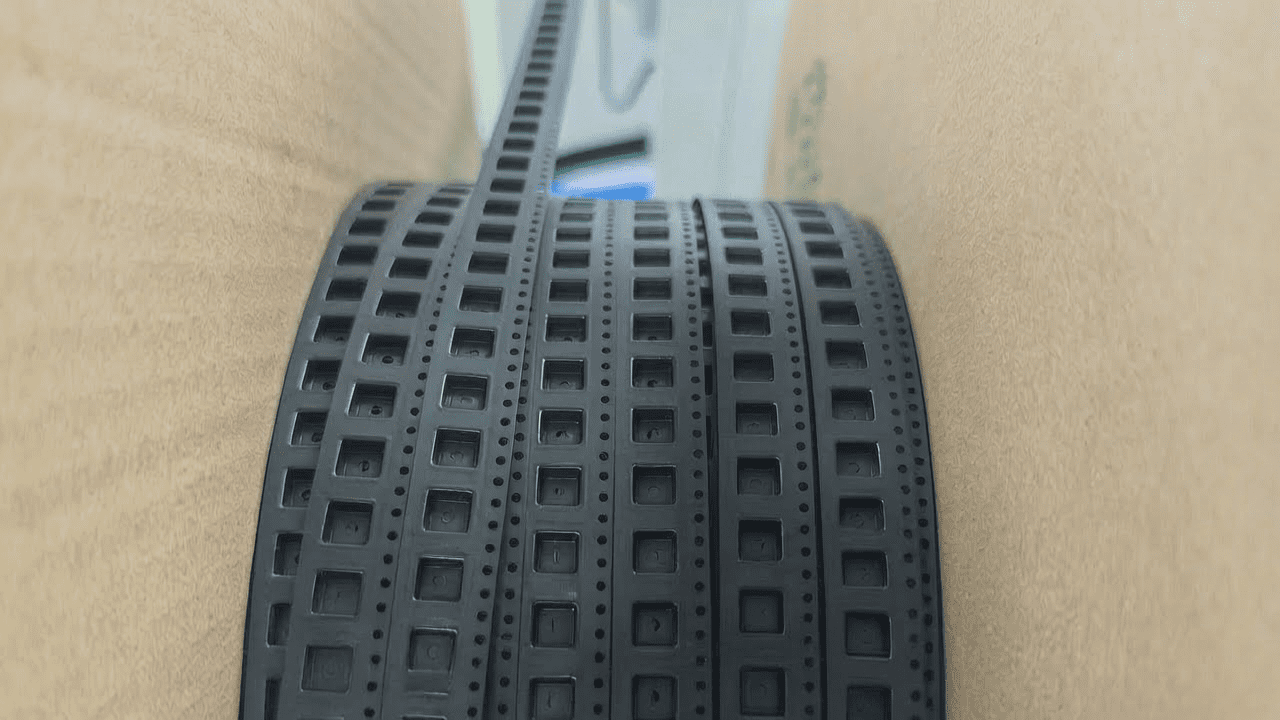

Black conductive PS carrier tape typically consists of a base layer made of polystyrene, an adhesive layer, and a conductive coating. The base layer provides mechanical strength and dimensional stability, while the adhesive layer ensures secure component retention. The conductive coating imparts surface resistivity in the range of 10^4 to 10^6 ohms per square, effectively dissipating static charges.
Key Parameters
For instance, Kairuie’s model BCP-8-12 features a PS thickness of 0.25 mm, a peel strength of 0.5 N (tested at 300 mm/min), and surface resistivity of 1×10^5 ohms/sq. The adhesive is a solvent-based acrylic, optimized for low ionic contamination.
3. Core Process Parameter Control
Temperature
Recommended sealing temperature is 180±10°C. Exceeding 200°C can cause PS deformation, while below 160°C results in weak adhesion.
Pressure
Sealing pressure should be 3±0.5 bar. Excessive pressure may crush components, while insufficient pressure leads to incomplete sealing.
Time
Dwell time is 0.5±0.1 seconds. Longer times risk adhesive bleed, shorter times cause poor bonding.
Process Window Optimization
To optimize, use a design of experiments (DOE) approach to balance temperature, pressure, and time. For example, a central composite design can identify the ideal combination for maximum peel strength.
4. Common Issues & Troubleshooting
| Symptom | Root Cause | Solution |
|---|---|---|
| Component pop-up during peeling | Excessive peel strength or incorrect sealing temperature | Reduce sealing temperature by 5°C or adjust pressure to 2.5 bar |
| Carrier tape curling | Uneven cooling after sealing | Ensure uniform cooling rate; use a cooling plate at 25°C |
| ESD failure | Surface resistivity outside spec (e.g., >10^6 ohms/sq) | Verify conductive coating thickness; apply anti-static spray if needed |
| Adhesive residue on components | Adhesive bleed due to high temperature or long dwell time | Reduce dwell time to 0.4 seconds or lower temperature to 175°C |
| Dimensional instability | High humidity exposure before use | Store in dry environment (RH<60%) and bake at 50°C for 2 hours before use |
5. Quality Inspection Standards
Incoming Quality Control (IQC)
Visual inspection for scratches, contamination, and color uniformity. Dimensions checked per EIA-481 standard: width tolerance ±0.3 mm, pitch tolerance ±0.1 mm. Peel strength tested at 300 mm/min, with minimum 0.3 N.
In-Process Quality Control (IPQC)
Sampling frequency: every hour or per 1000 units. Acceptance criteria: no visible defects, peel strength within 0.3-0.8 N, surface resistivity 10^4-10^6 ohms/sq.
Reliability Testing
Aging test: 85°C/85% RH for 168 hours, then peel strength must be >0.2 N. High/low temperature cycling: -40°C to 85°C, 10 cycles, no cracking. Transportation simulation: vibration at 5-200 Hz, 1 hour, no component loss.
6. Selection Guide
| Component Type | Recommended Model | Key Features |
|---|---|---|
| Small passive (0402, 0603) | BCP-8-12 | Low peel strength, high dimensional accuracy |
| IC packages (SOIC, QFP) | BCP-12-16 | Higher strength, anti-static coating |
| LED components | BCP-8-12 (transparent cover) | Optical clarity, UV resistance |
| Large connectors | BCP-16-24 | Thick base (0.35 mm), high rigidity |
7. Conclusion
Black conductive PS carrier tape offers a reliable ESD-safe solution for SMT packaging. With precise control of process parameters and adherence to quality standards, it ensures high assembly yield. Kairuie Electronic Materials Co., Ltd. provides a range of models tailored to various component needs. For more information, visit www.kairuie.com. We welcome industry peers to exchange technical insights and collaborate on advancing SMT packaging technology.
